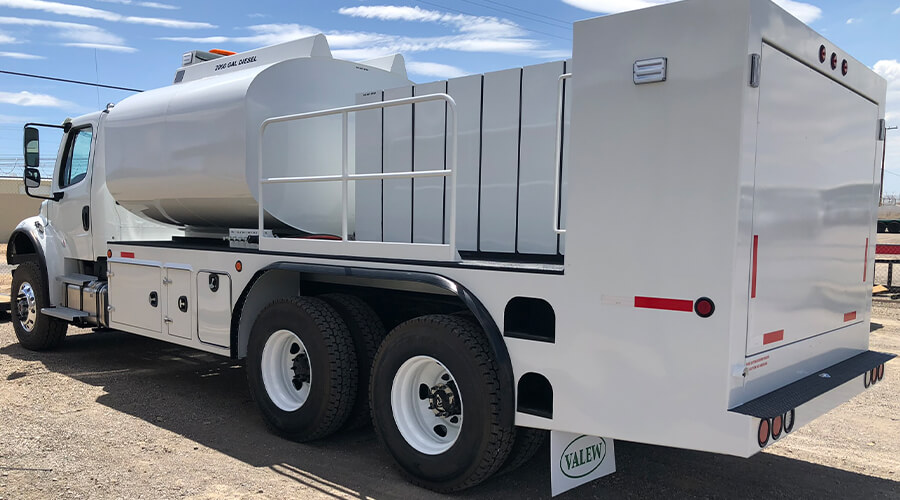

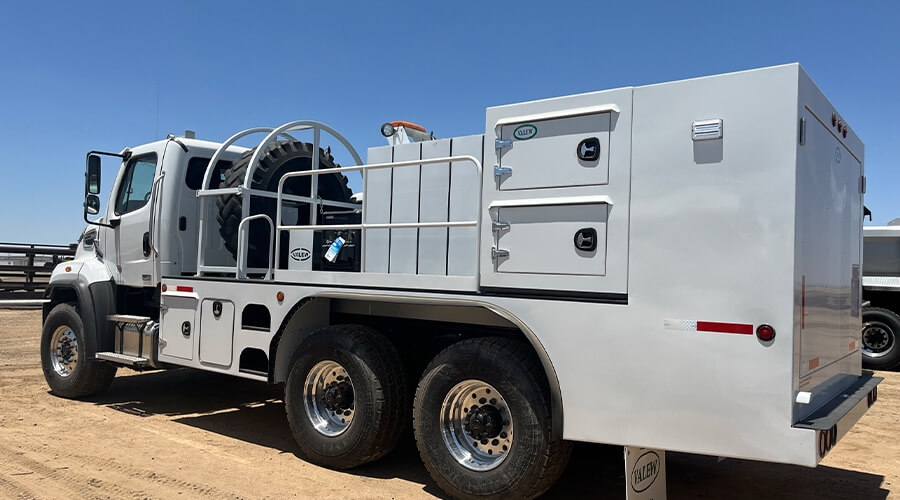

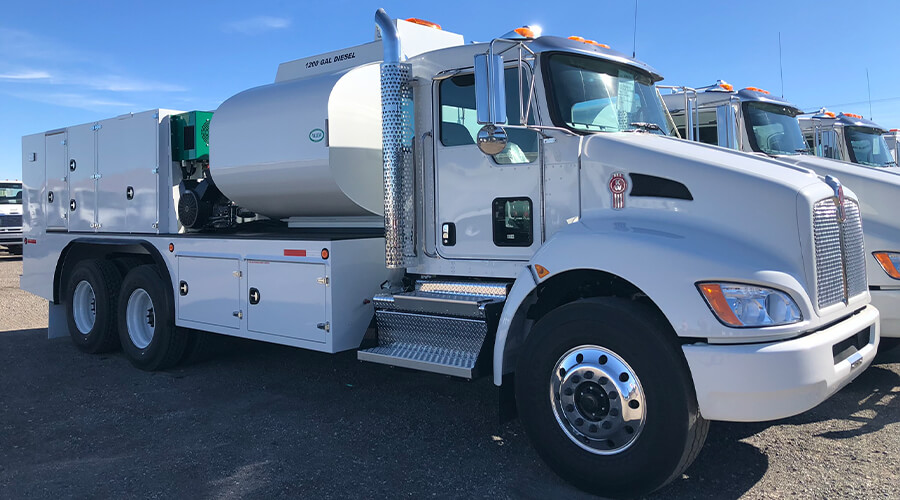

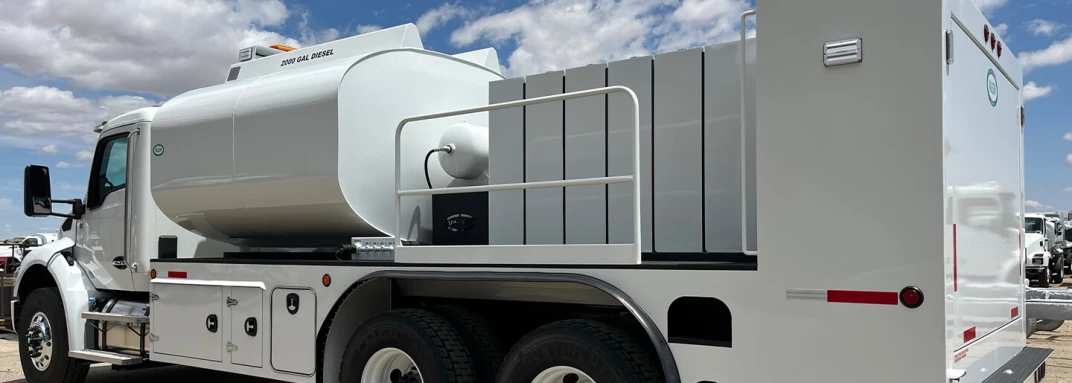

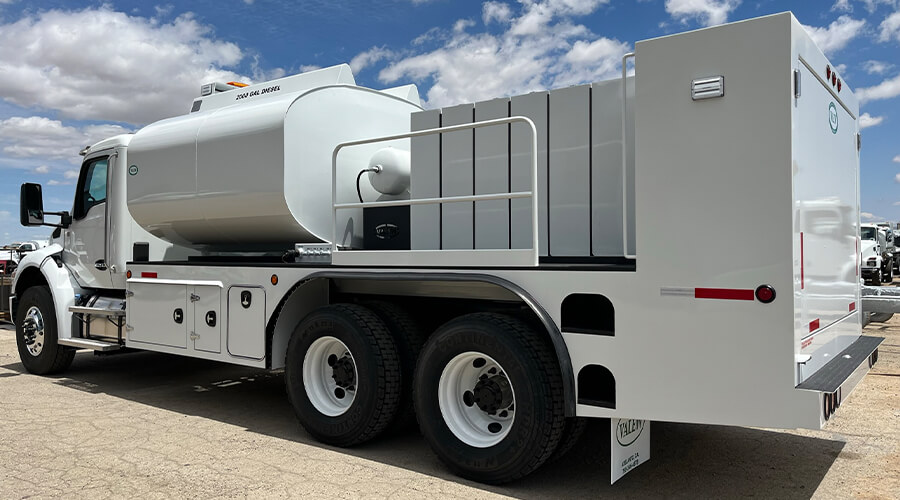

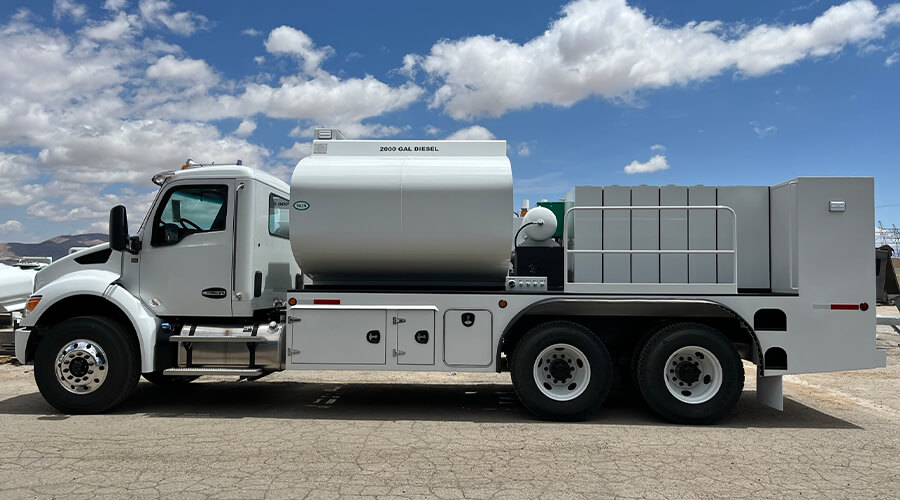

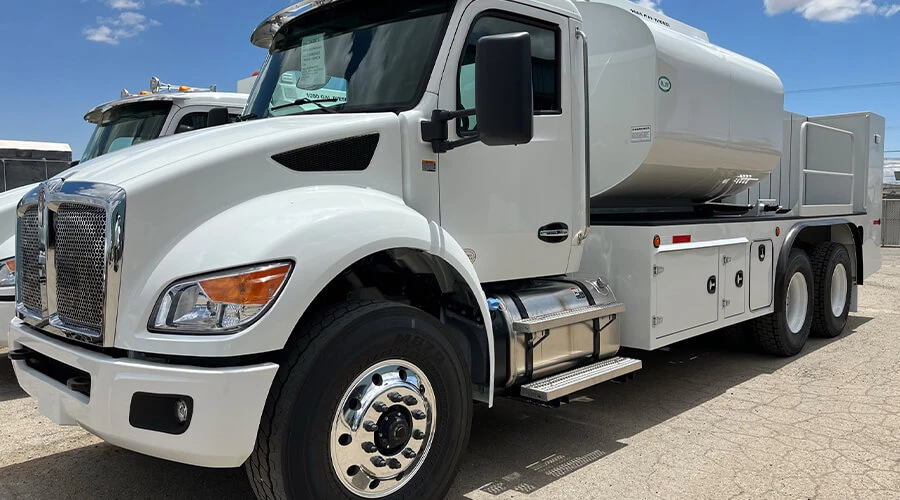

2000 Gallon Fuel and Lube Truck
Request a Quote
Download Brochure
Find Parts
Our 2000-gallon fuel and lube trucks are engineered for efficiency and durability, making them an essential asset for servicing and fueling vehicle fleets. These robust units combine high-capacity fuel storage with versatile lube delivery systems, ensuring optimal performance and minimal downtime for your fleet. With user-friendly designs and advanced safety features, Valew’s trucks streamline operations by providing convenient on-site service, reducing logistical costs, and boosting productivity. Ideal for construction sites, mining operations, and large transportation companies, Valew's fuel and lube trucks are the reliable solution for managing fuel and maintenance needs effectively.
Features & Specifications
- Bed Construction: Valew’s lube and service body conforms to ASTM and DOT specifications and is constructed out of A-36 3/16” plate or channels. All body components are mounted to provide maximum ground clearance.
- Compressed Air System: Atlas hydraulic driven compressor producing 40 CFM with Sampson extra heavy-duty reel. System is complete with 50’x3/8” hose assembly, 30-gallon air tanks, quick disconnects, and blow gun.
- Tanks: Valew tank package includes, (1) 2000-gallon diesel tank, (4) 90-gallon oil product tanks, (1) 90-gallon stainless steel coolant tank, (1) 175-gallon waste oil recovery tank, (1) DEF system for 55-gallon barrel, and (1) 55-gallon grease station. The tank package can be customized to fit your needs.
- Plumbing: All hoses and lines are appropriately sized, and pressure rated for function. All hose fittings are swivel type. 2000gl Diesel and product pumps are hydraulic driven pumps that are pressure compensated, coolant, grease, and reclaim are air driven Sampson brand pumps, all fitted with 50’ hose assemblies to give you maximum flexibility and range. Diesel to have a 2” Wiggins bottom fill with auto shut off, and oil products to have bottom fills as well.

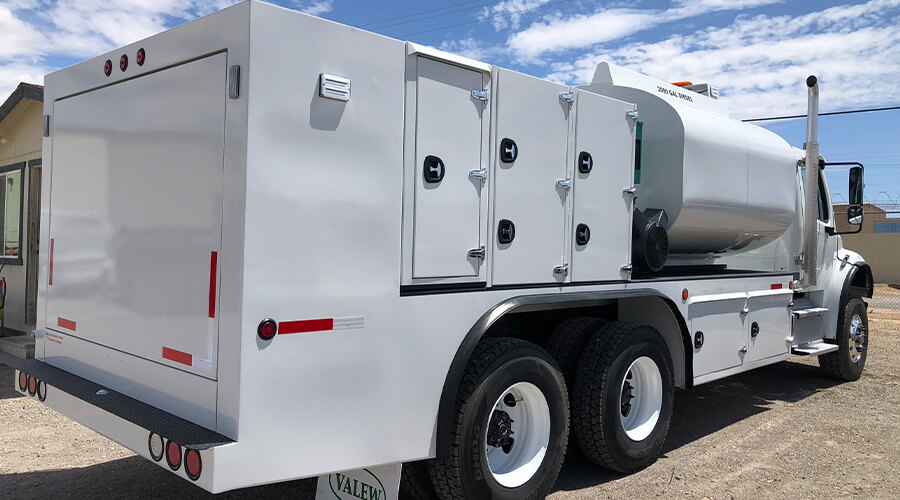

- Storage System: Comes complete with integrated lighted under body storage boxes, below deck filter box, and trash compartment plumbed to the oil recovery system.

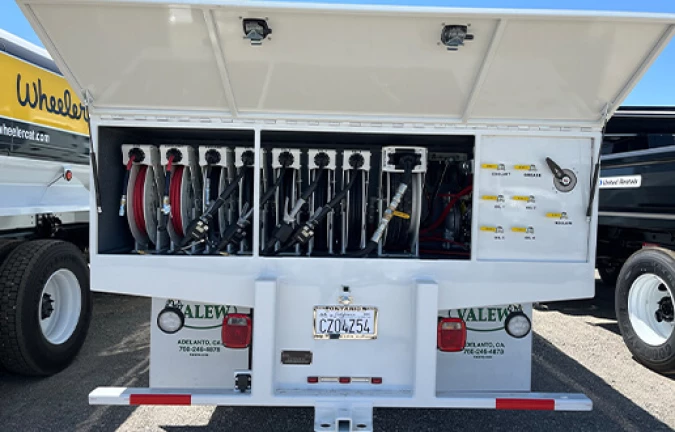

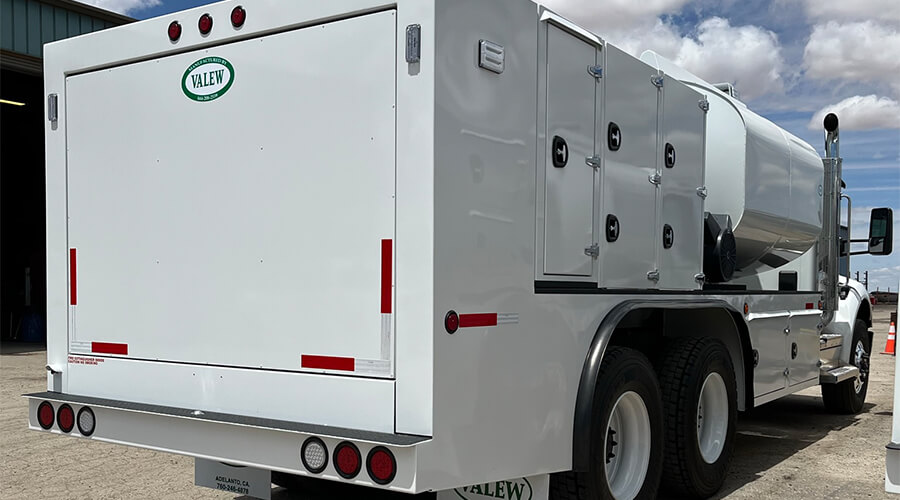

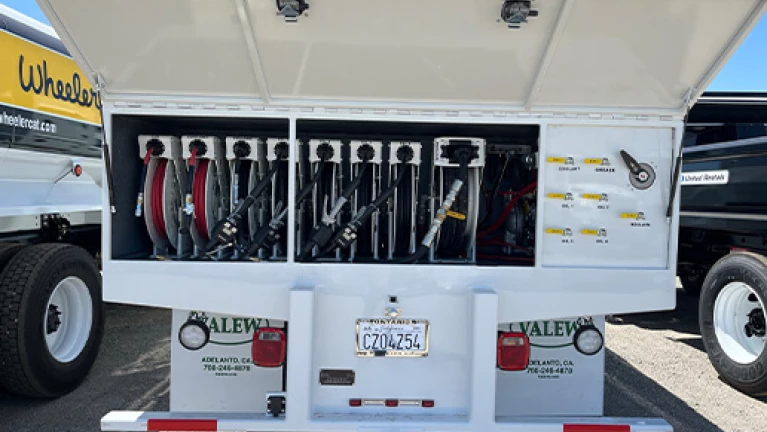

- Automatic Rear Door: Easily accessible rear compartment houses all hose reels and controls and is secured with an air operated automatic door. Valew has installed an additional 12-volt DC outlet for easy trailer light testing.
- Work Lights: (6) LED work lights are provided to light side and rear work areas, LED Beacon light top front center.
- Warranty: Valew warranties the bodies for 12 months for workmanship and materials.
- Primer and Painted White in color

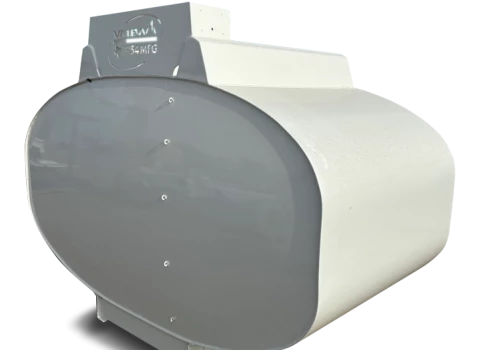

Our 2000 gallon tanks can be modified and split, to enable the transportation of both clean and waste diesel. These tanks can also be increased or decreased in size to fit your needs.
In addition to the large diesel tank, there is a multitude of product tanks that can be customized to fit your needs.
We offer an extended one year warranty on all fuel and lube trucks.
Valew lube and service body conforms to ASTM and DOT specifications and is constructed out of steel and aluminum plate or steel channels.
Resources
We offer customizations! Ask us for an estimate
Our lube trucks come in a wide variety of sizes and configurations that can be customized to fit your needs!

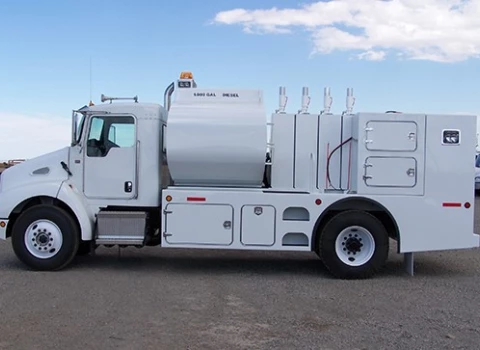

1000 Gallon Fuel and Lube Truck
- Bed Construction: Valew lube and service body conforms to ASTM and DOT specifications and is constructed out of steel and aluminum plate or steel channels. All body components are mounted to provide maximum ground clearance and are permanently labeled.
- Compressed Air System: Atlas hydraulic driven compressor producing 29 CFM with Sampson extra heavy-duty reel. System is complete with 50’x3/8” hose assembly, air tank, quick disconnects, and blow gun.
- Tanks: Valew standard tank package includes (1) 1000-gallon diesel tank, (4) 90-gallon oil product tanks, (1) 90-gallon stainless steel anti-freeze tank, (1) 90-gallon waste oil recovery tank, (1) DEF system for 55gl poly drum, and (1) 120lb grease station. The tank package is customized to fit your needs.
- Plumbing: All hoses and lines are appropriately sized, and pressure rated for function. All hose fittings are swivel type. Diesel, Oil, coolant, DEF, and reclaim pumps are air driven Sampson brand pumps and fitted with 50’ hose assemblies to give you maximum flexibility and range. 2” Wiggins bottom fill, and manifold for oil bottom fills.
