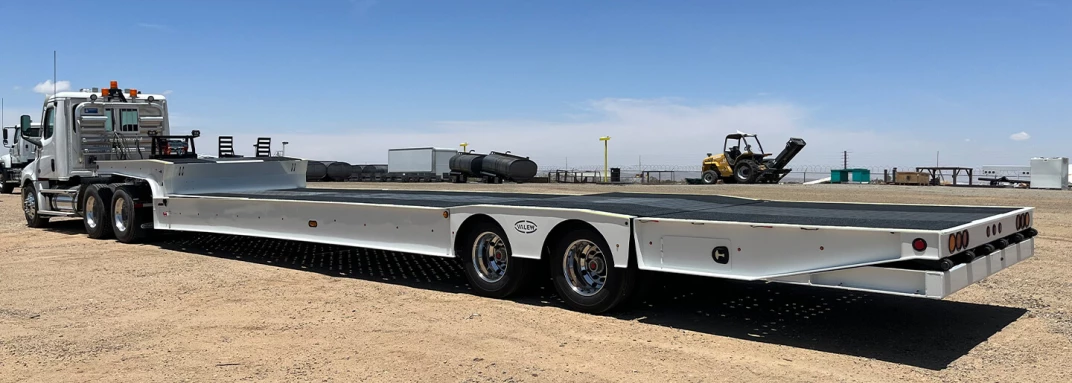

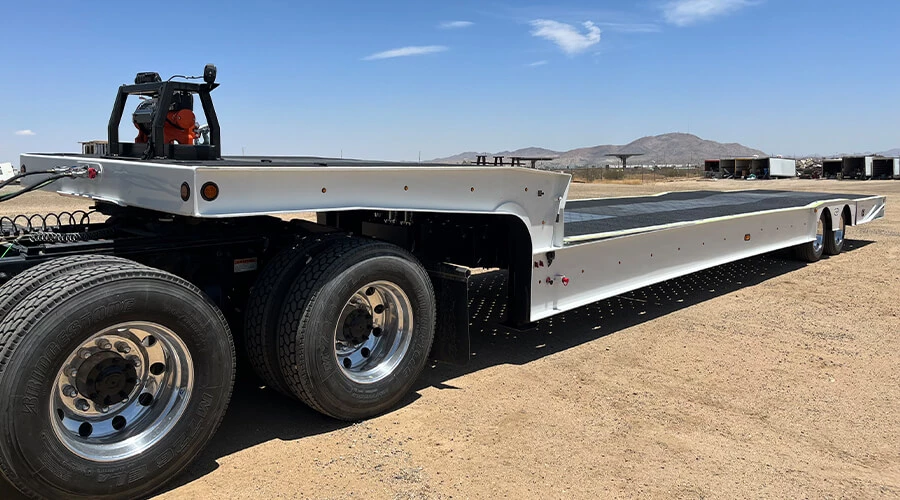

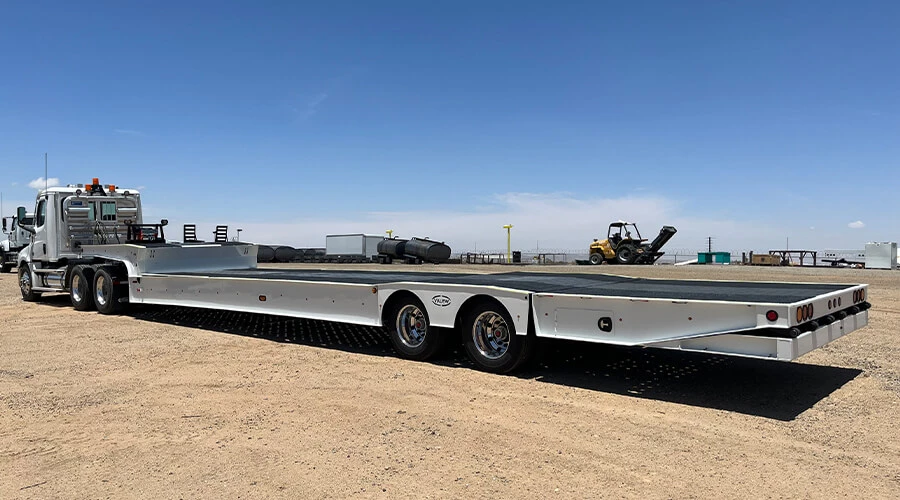

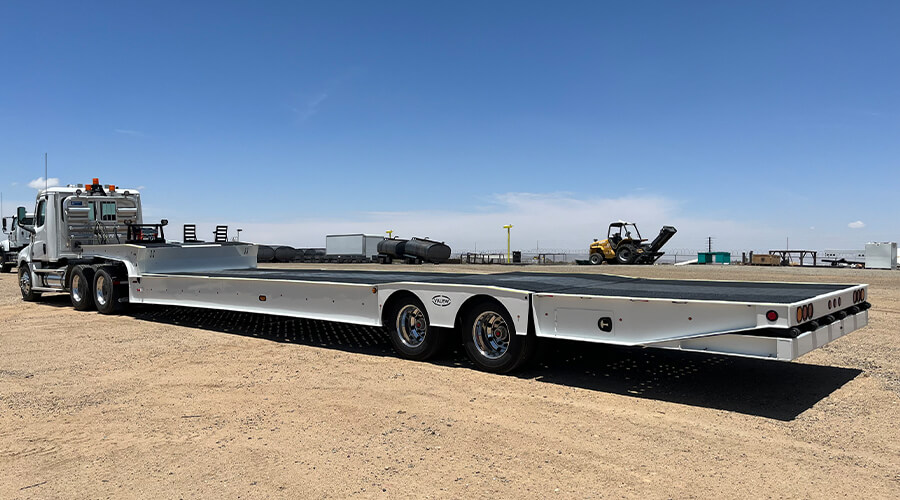

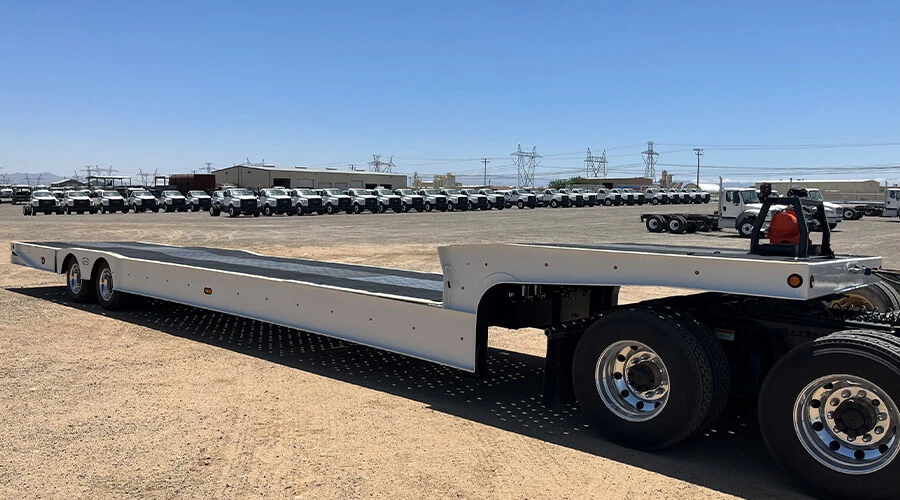

Introducing the new 48-foot fully self-contained equipment hauling trailer, engineered for optimal efficiency and versatility. This cutting-edge trailer features a robust design that accommodates a wide range of equipment, ensuring secure transport without compromising on durability. Equipped with integrated storage solutions and advanced safety features, it streamlines the hauling process and simplifies transportation. Its user-friendly layout allows for quick loading and unloading, making it an indispensable asset for contractors, landscapers, and any business requiring reliable transport. Experience unmatched convenience and performance with this industry-leading hauling solution.
Features & Specifications
- Capable of concentrated loads of 80,000 lbs distributed gross combined Truck and Trailer
- Bed approximate overall dimensions 102” wide x 48’ long
- 10’ Front Deck, 30’ main deck, front 8’ of main deck pneumatically tilts up to the upper deck and has manual lock
- Low load angle, with air suspension deflated load angle is approximately 10 degrees
- 8’ Main tail with 4’ flip tail, unfolds to a 12’ approach
- The tail lift is electric over hydraulically operated
- CAT Hardened hinge pins on folding main deck & flip tail sections for greater durability
- 3/16” Hardox perforated steel material on deck, flip tail, and over wheel areas in rear

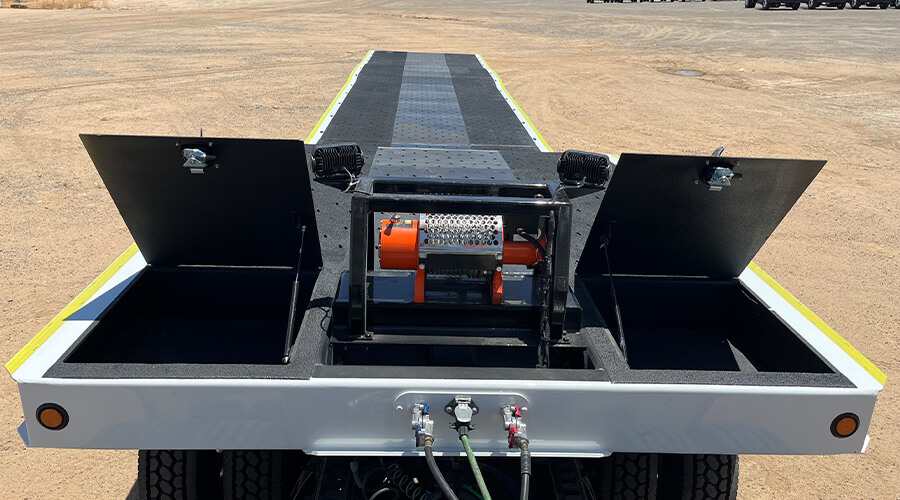

- (2) Toolboxes 1 each side upper deck front, (2) Toolboxes 1 each side in rear tail area
- 16” Exterior main beams, alternating 8” and 10” I-Beams as well
- Cross members on 12” centers
- 25,000lbs axles with air ride suspension
- 17.5 ply low pro tires on aluminum wheels
- ABS anti-skid braking system
- 2” Holland kingpin on 3/8” kingpin plate
- Aeroquip hoses, fittings, and quick coupler connections
- Front mounted manual controls on driver side only

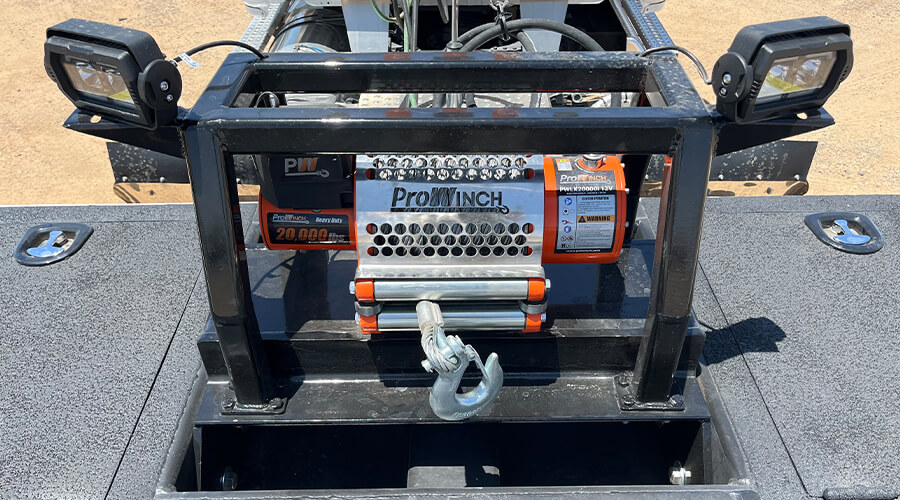

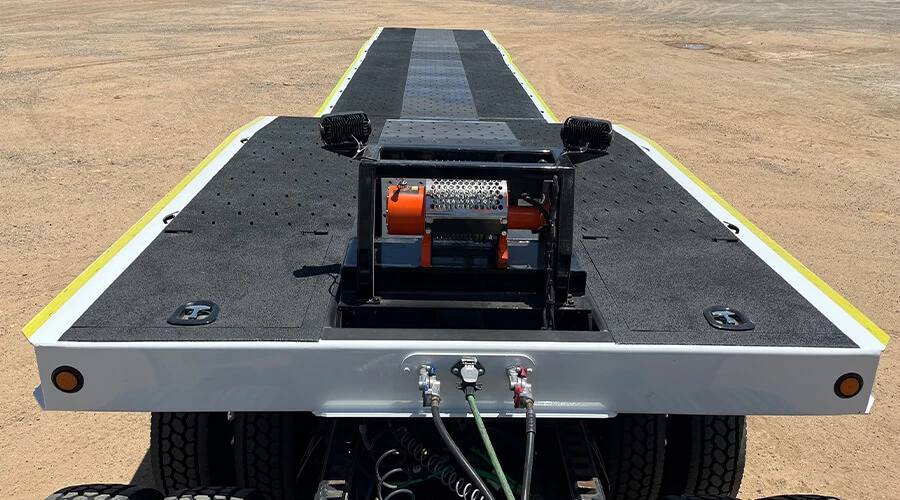

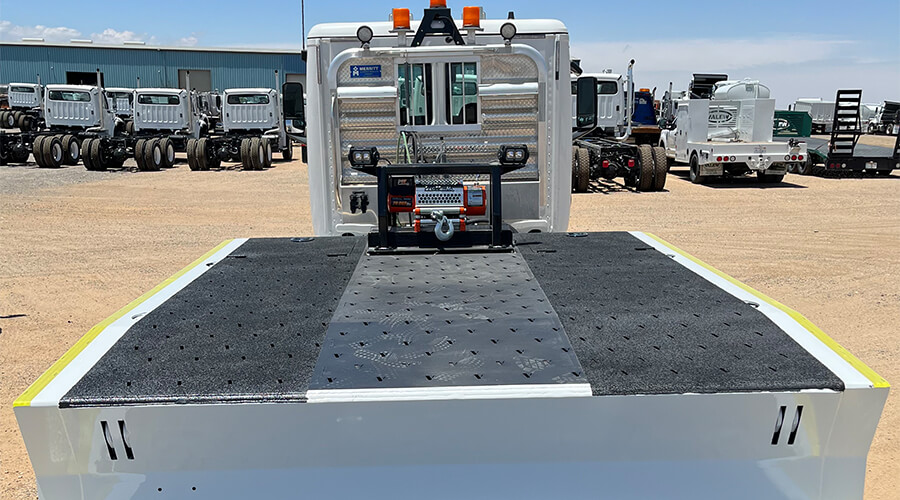

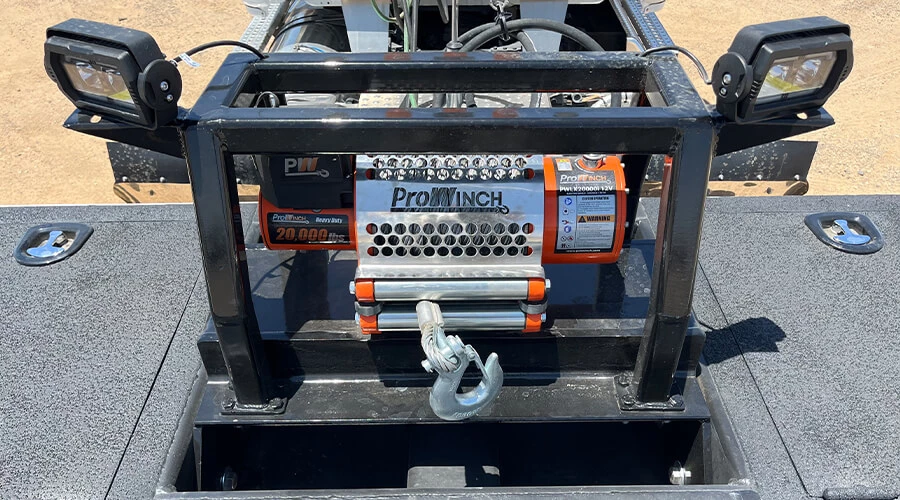

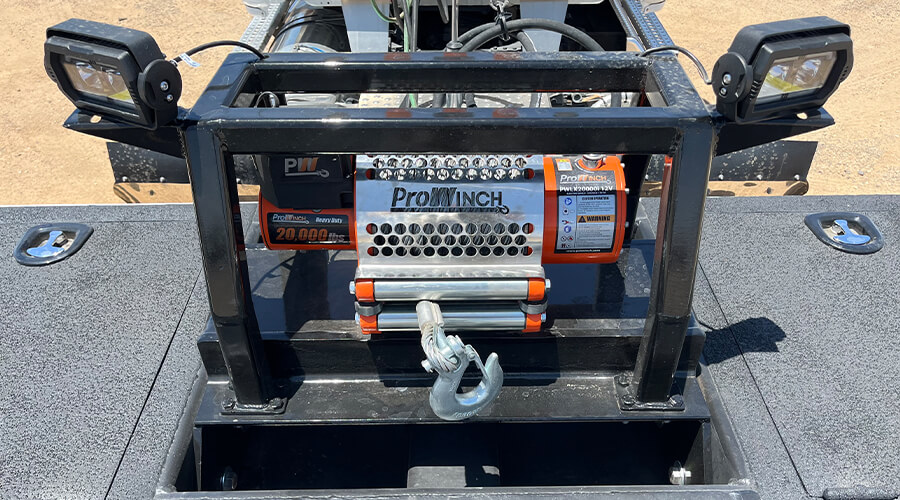

- 20,000 lb winch with manual controls Driver Side and 4 Function wireless remote

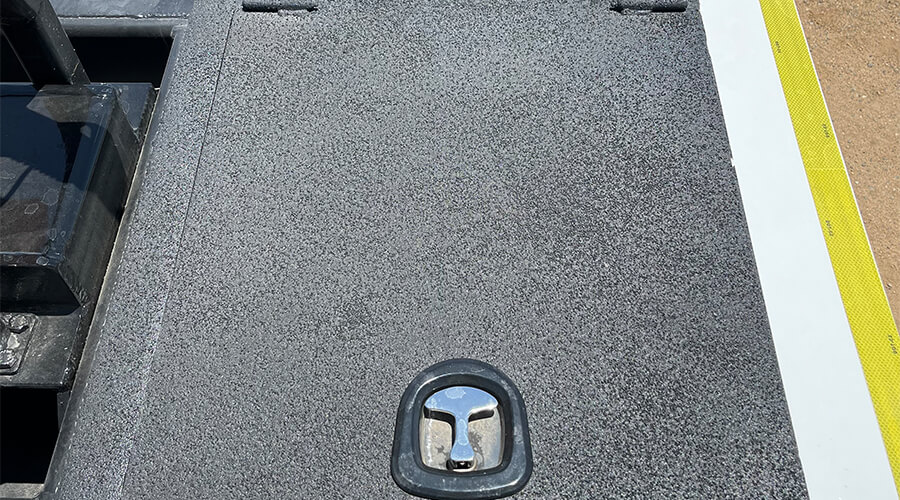

- Chain slots down both sides, and Recessed D-rings for tying down loads
- Air weigh trailer scale
- Heavy Duty landing gear
- Operators deck step and handle
- Capable of ground loading or off low docks
- Truck-lite sealed wiring and lighting, and 3M conspicuity tape

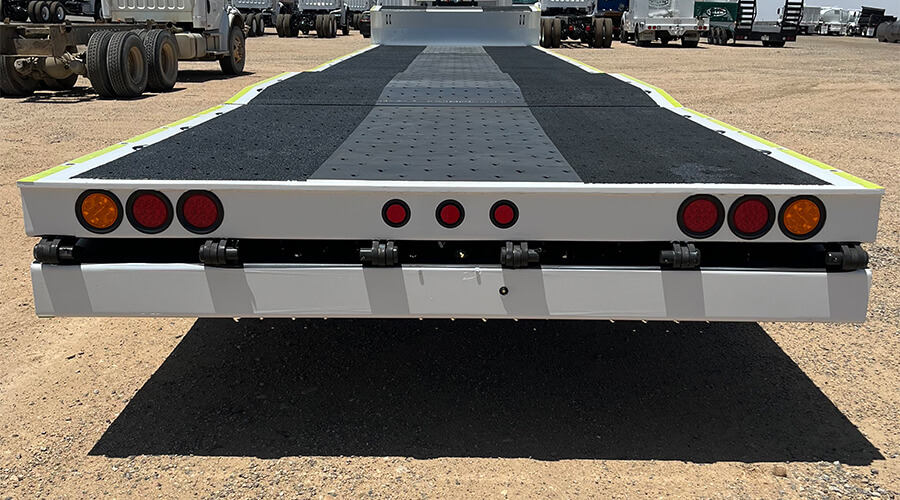

- Rear tail and deck ramp safety lighting
- Raptor grip paint on rear front and rear deck areas, as well as over the wheel wells
- Primer and Painted White in color

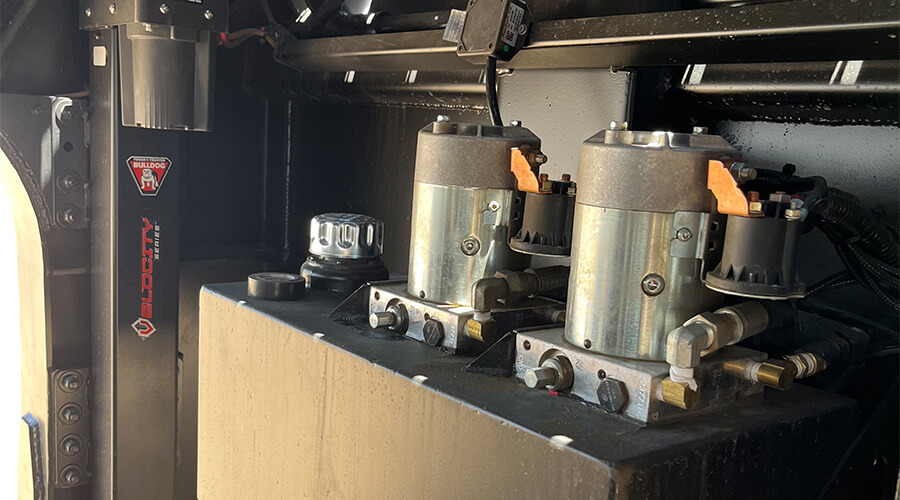

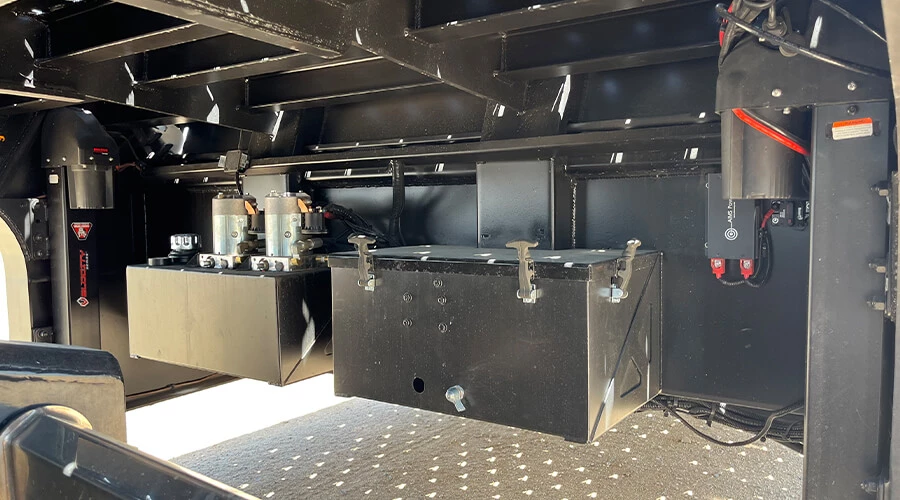

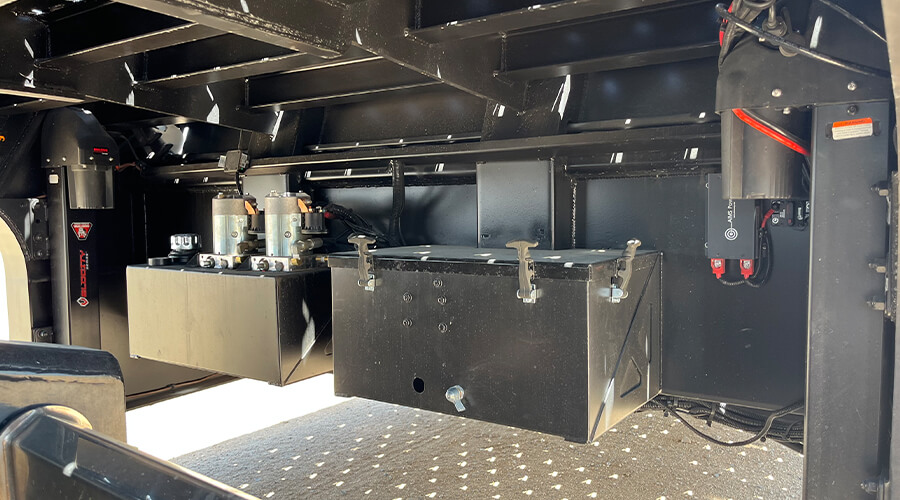

Our 48' Trailer is fully self-contained with an integrated hydraulic system to power the hydraulic tail and lift functions of the trailer.
This new trailer design was tested and used by real world drivers before being offered for sale. Rest assured in their quality and durability.
These trailers come equipped with a remote-control function for all hydraulics, as well as the winch functions.
These trailers are built to haul up to a combined weight of 80,000lbs
Resources
We offer customizations! Ask us for an estimate
Our trailers come in a wide variety of configurations that can be customized to fit your needs!
Light Equipment Haulers
- Sizes, Payloads, etc. will vary depending on body configuration
- Full Headache Rack with window cutout
- Storage for Chains and Binders
- H.D. H-Beam Long Rails
