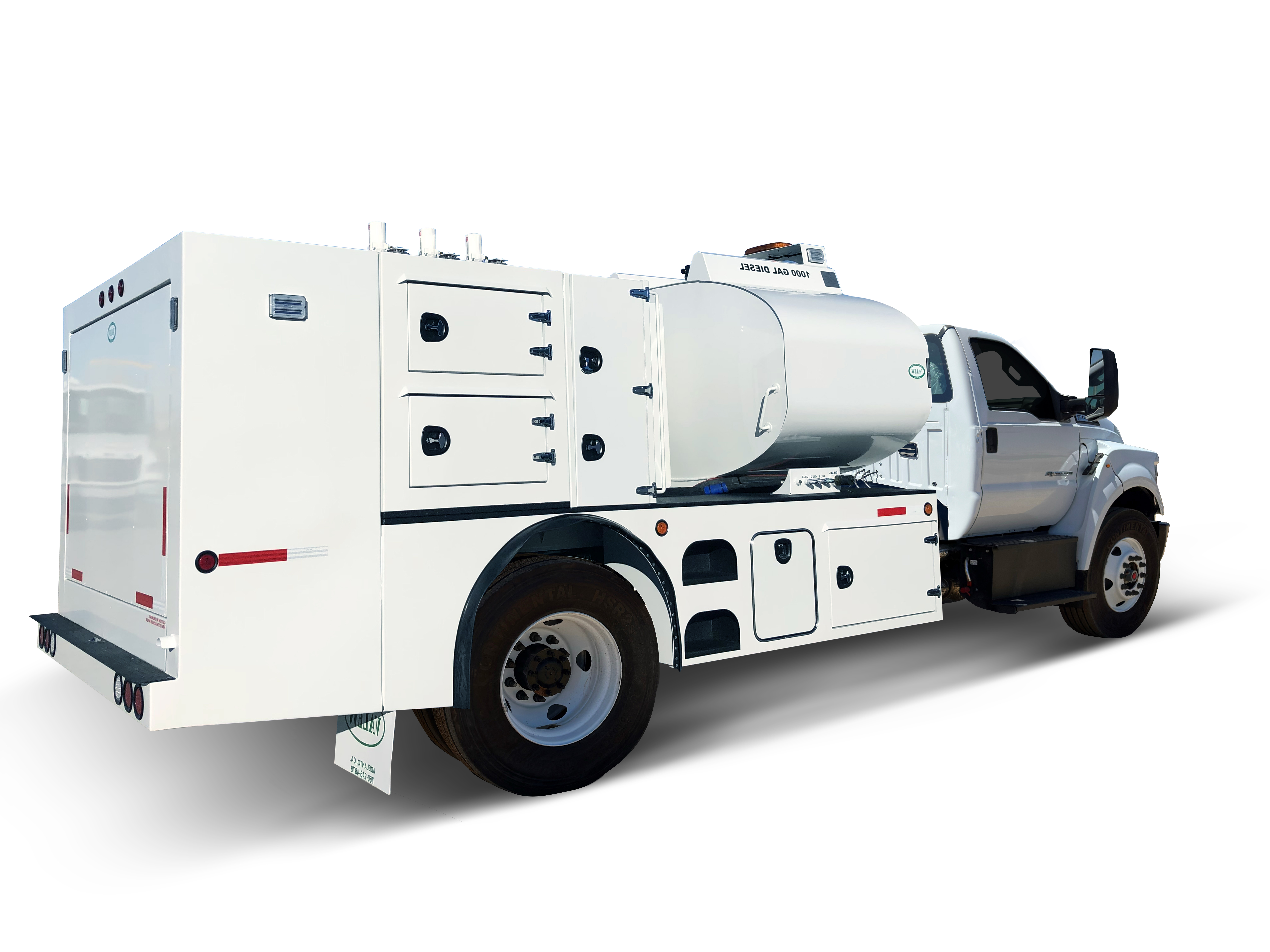

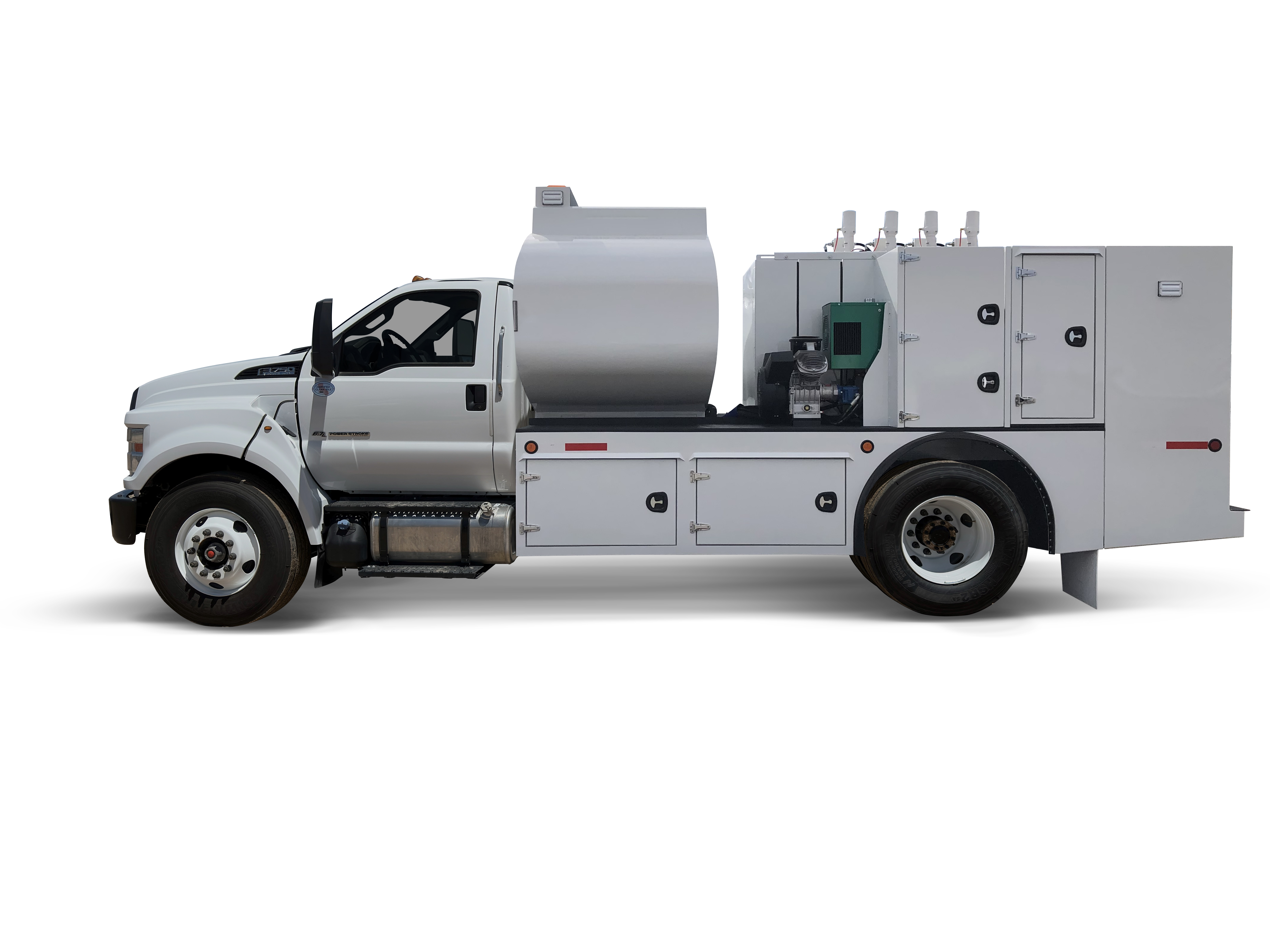

2024 Ford F750 with Closed Back Lube and Fuel Service Body

Ford F750 Specifications:

Regular Cab

6.7L Power Stroke Diesel Engine w/ 270 hp – 700 torque

Ford Torq shift 10-Speed Auto Transmission w/ PTO provision

14,000lbs front and 23,000lbs rear axles 37,000lbs GVW chassis

Driver controlled locking rear axle drive axle

Air Brakes

Aluminum 50-gallon fuel tank

Side entry steps, A/C, P/S, AM / FM Radio

Tilt / telescopic steering wheel

Driver and passenger bucket seats

White in Color

Note: Need to shorten the wheelbase 30” / included

Body Specifications:

Bed Construction: Valew’s lube and service body conforms to ASTM and DOT specifications and is constructed out of steel and aluminum plate or steel channels. All body components are mounted to provide maximum ground clearance and are permanently labeled.

Compressed Air System: Atlas hydraulic driven compressor producing 29 CFM with Sampson extra heavy-duty reel. System is complete with 50’x3/8” hose assembly, air tank, quick disconnects, and blow gun.

Tanks: Valew’s standard tank package includes (1) 1000-gallon diesel tank, (4) 90-gallon oil product tanks, (1) 90-gallon stainless steel anti-freeze tank, (1) 90-gallon waste oil recovery tank, (1) DEF system for 55gls poly barrels, (1) 120lbs grease station.

Plumbing: All hose and lines are appropriately sized, and pressure rated for function. All hose fittings are swivel type. Diesel, Oil, coolant, DEF, and reclaim pumps are air driven Sampson brand pumps and fitted with 50’ hose assemblies to give you maximum flexibility and range. 2” Wiggins bottom fill.

Storage System: Comes complete with integrated light under body toolboxes, below deck filter box, and trash compartment plumbed to the oil recovery system.

Automatic Rear Door: Easily accessible rear compartment houses all hose reels and controls and is secured with an air operated automatic door.

Work Lights: (6) LED work lights are provided for the light side and rear work areas.

Warranty: Valew warranties the bodies for 12 months for workmanship and materials, and 2 years on Sampson products

Body Primer and Painted White in Color

Note: Tank capacities may vary + or – 10% for expansion
